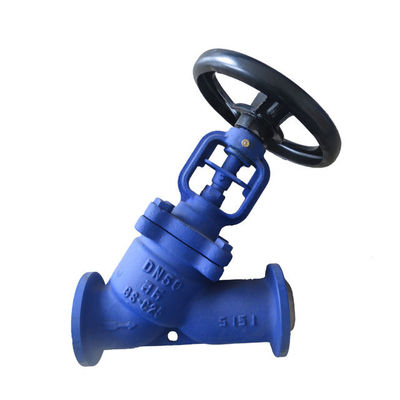

DIN Standard Bellow Seal Y Type Globe Valve
Share to：

DIN Standard Bellow Seal Y Type Globe Valve

1： Size: from 2″ to 16″
2： Material: 1.0619, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, and
3： CF8MDesign and production standard: DIN3356, BS1873 or API602
4： Distance between flanges: DIN2543-2545 or ANSI B16.5
5： Connected in accordance with standard: DIN2543-2545 or ANSI B16.5
6： Test standard: DIN3230, API 598 or MSS SP-117
Inquire Now
DESCRIPTION
REVIEW

1. Stem: forged steel, single-part construction, ACME screw

2. Body-bonnet gasket: 150-600 LB graphite + stainless steel spiral wound gasket. 900 LB “ring joint” type bonnet

3. Body and bonnet: high quality and precision tooled cast iron. Single-part bonnet

4. Double wall bellows seal

5. Backseat for on-line maintenance

6. Rising wheel

7. Position indicator

8. Anti-rotation device for prevention of torsion of bellows seal

9. Bellows seal welded onto stem
